Planetary Mono Mill
PULVERISETTE 6
classic line
Caracteristicas técnicas
-
OVERVIEW
High performance in minimum space

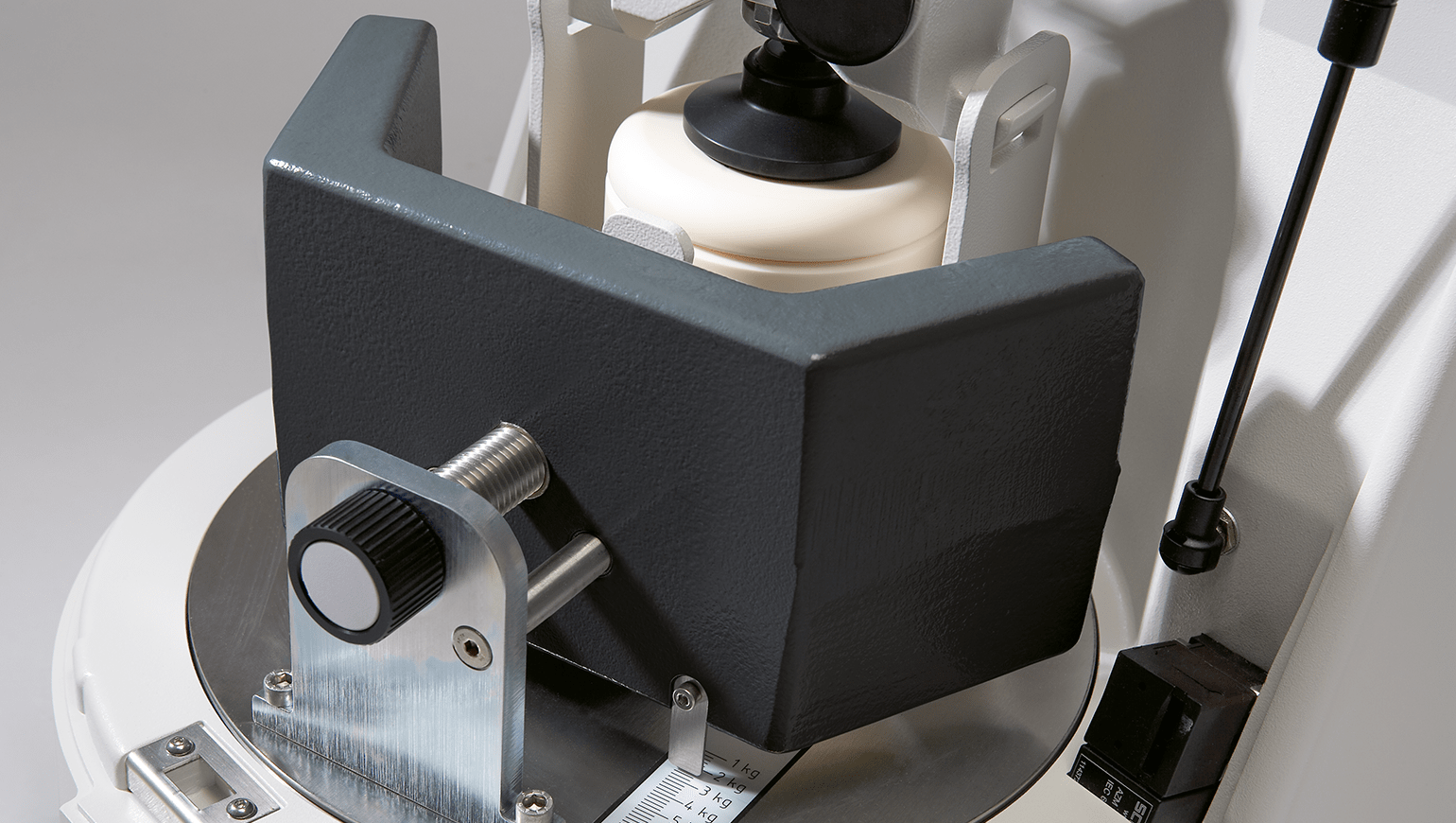

The Planetary Mono Mill PULVERISETTE 6 classic line is a high-performance Planetary Ball Mill with a single grinding bowl mount and practical, easily adjustable imbalance compensation. Your advantage: Particularly easy use and high-energy effect of up to 650 rpm. This ensures a constantly high grinding performance with extremely low space requirements for loss-free grinding results for the comminution of hard, medium-hard, brittle and moist materials, dry in suspension or in inert gas.
At same time, the PULVERISETTE 6 classic line is ideally suited for mechanical alloying or for mixing and perfect homogenising of emulsions and pastes. -
WORKING PRINCIPLE

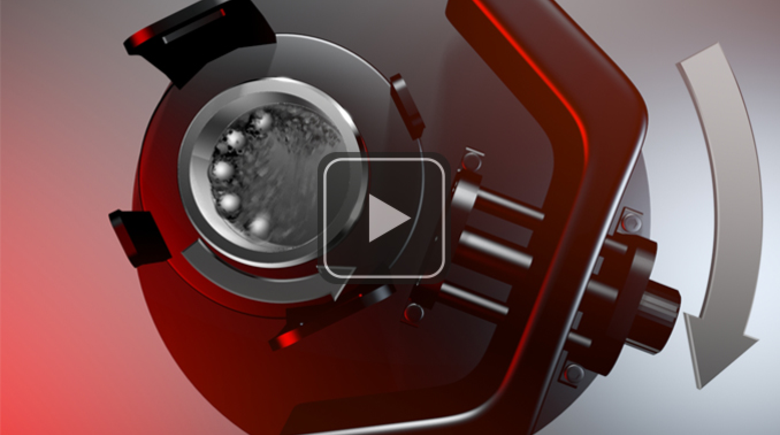

Comminution according to the Planetary Principle
The comminution of the material to be ground takes place primarily through the high-energy impact of grinding balls. To achieve this, the grinding bowl, containing the material to be ground and grinding balls, rotates around its own axis on a main disk whilst rotating rapidly in the opposite direction. At a certain speed, the centrifugal force causes the ground sample material and grinding balls to separate from the inner wall of the grinding bowl. The grinding balls then cross the bowl at high speed and further grind the sample material by impact against the opposite bowl wall. In addition, impact between the balls themselves on the sample material adds to the size reduction process.
Due to the enormous rotational speed of the main disk – up to 650 rpm – achieves the PULVERISETTE 6 classic line a centrifugal acceleration of up to 29 g. -
FEATURES
- Special grinding force due to a rotational speed of up to 650 rpm
- Low space requirements and ergonomic design
- Particularly easy-to-use
- Timer programming precise to ± one second
- Simultaneous processing of up to 2 samples
- Useful capacity up to 225 ml
- Large rotational speed range with accurate display
- Easy to open grinding chamber completely encapsulated
- Cooling of the grinding chamber with a built-in fan for long grinding times
- Exactly reproducible grinding results thanks to a regulated drive, precise transmission ratio (toothed belt), programmable microprocessor control electronic
- Programmable interval and pause times
- Smaller grinding bowls also possible with an adapter
- Monitoring of the grinding parameters even when grinding chamber is open through an ergonomically positioned and always visible, splash-proof IP65 membrane keyboard
- Easy cleaning of the grinding elements
- Energy-save-function (electricity-saving mode)
- Extensive accessories for simplifying your daily work
View extensive accessories
-
SAFE GRINDING BOWL CLAMPING
Reproducible grinding results and absolutely safe grinding bowl clamping
Especially convenient for exact, reproducibility and grinding of smallest sample amounts is the electronic timer: adjustable to the second and a programmable reversing feature. The Safe-Lock System, which is delivered with a torque wrench, enables simple and safe clamping of the grinding bowls - absolutely risk-free.
-
MEASURING GAS PRESSURE AND TEMPERATURE
EASY GTM classic line - Gas Pressure and Temperature Measuring System
With the new EASY GTM Gas Pressure and Temperature Measuring System you can turn the Planetary Mono Mill PULVERISETTE 6 classic line into an analytical measurement system.
-
EQUIPMENT / ACCESSORIES
Configure your Planetary Mono Mill PULVERISETTE 6 classic line exactly to your specific application
The Planetary Mono Mill PULVERISETTE 6 classic line with 1 working station operates with 1 respectively 2 grinding bowls of sizes 80, 250, 500 ml, which turn with a transmission ratio 1 : -1,82 relative to the main disk. To achieve best grinding results and for direct prevention of contamination of the samples due to undesired abrasion, grinding bowls and grinding balls are available in 6 different materials.
For grinding in inert gas, for mechanical activation and alloying are gassing lids recommended.
-
