Comminution of plastic beverage bottles
Packaging regulations mandate the processing
In the past, a lot of plastic was favoured in the steel and cement industry as a source of energy. With the rise of crude oil prices became - besides the thermal use - also the adaptation to new packaging materials economically interesting. Prerequisite for this is the at least the reasonably genuine provision of the plastic materials. For this purpose the return of the beverage bottles by the consumers is an obvious solution.
Processing of used beverage bottles

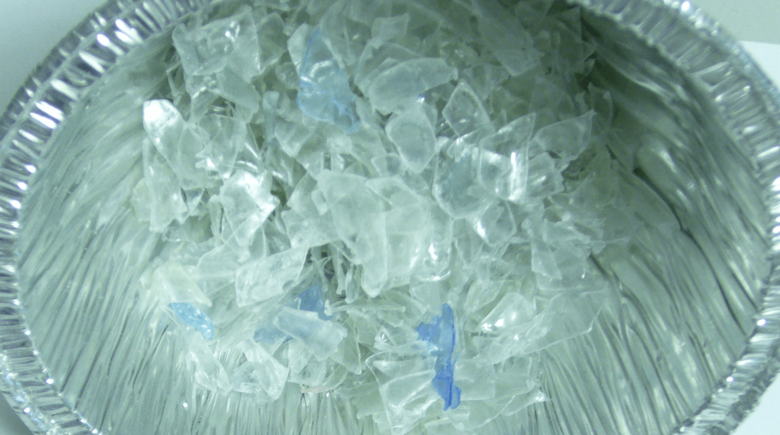

The waste manager is now has the task of processing these materials. For this purpose, the plastic bottles are shredded. This process creates pieces (so called flecks) of an average size of 3 x 12 mm and also naturally a very fine dust. With a suitable cleaning process, the shredded product is washed absolutely clean. The separation from other plastics, like for example PP (polypropylene) or PE (polyethylene) from which mostly the screw caps are made, is accomplished with the sink and float method with a density separation. After the drying, the paper labels may also be removed with a blowing off process. The flecks are sold in this state by the recycling firms. For further processing, the fine share must be extruded and the resulting granulate is then also sold.
A broad analytical evaluation is mandatory
The production of higher quality products from this recycled material requires a broad analytical evaluation. For this purpose a comminution of the flecks as well as the granules is necessary. The parameters to be evaluated are among others factors, the degree of polymerisation and the colour. A statement about the degree of polymerisation and thus on mechanical or thermal damage is obtained via the determination of the melt-index. This determination is a wide spread method in the field of chemical polymers. The measured value depends on the particle size. The colour is determined via white level measurement. But the measured data is greatly dependent on the reflected light and therewith also on the particle size. Therefore prior to the determination of the melt-index and before the measurement of the white level, the samples always must be prepared in a reproducible manner.
Comminution with the Variable Speed Rotor Mill

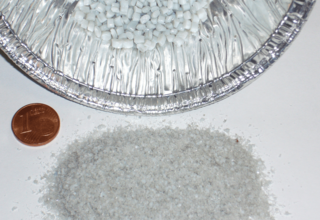

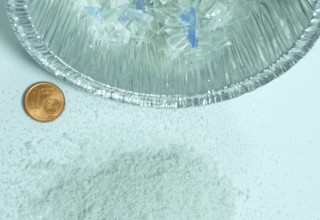

Utilized for the defined preparation of the samples is the Variable Speed Rotor Mill PULVERISETTE 14 classic line, inclusive the impact rotor with 12 ribs and a sieve with 1 mm mesh width. The rotational speed control for the cutting rotor is for the achievement of the reproducible results immensely important. Frequently for polyethylene terephthalate we recommend to work with 16.000 rpm. Tests by the users in this concrete case lead to the settings of lower rotational speeds. Dependent on products and testing parameters, the optimum rotational speed was set between 10.000 and 14.000 rpm. These low rotational speeds of the rotors minimize the mechanical, respectively the thermal demands during the comminution. Consequently a lower throughput is to be expected. Alternatively, could the material be embrittled and added at higher rotational speeds.
-
Download the FRITSCH-report as PDF file
-
Detailed grinding reports
